Products: Fasteners
What’s premium to others is standard at Vulcan Steel. Long-life fasteners are the standard roof fasteners on a Vulcan building.

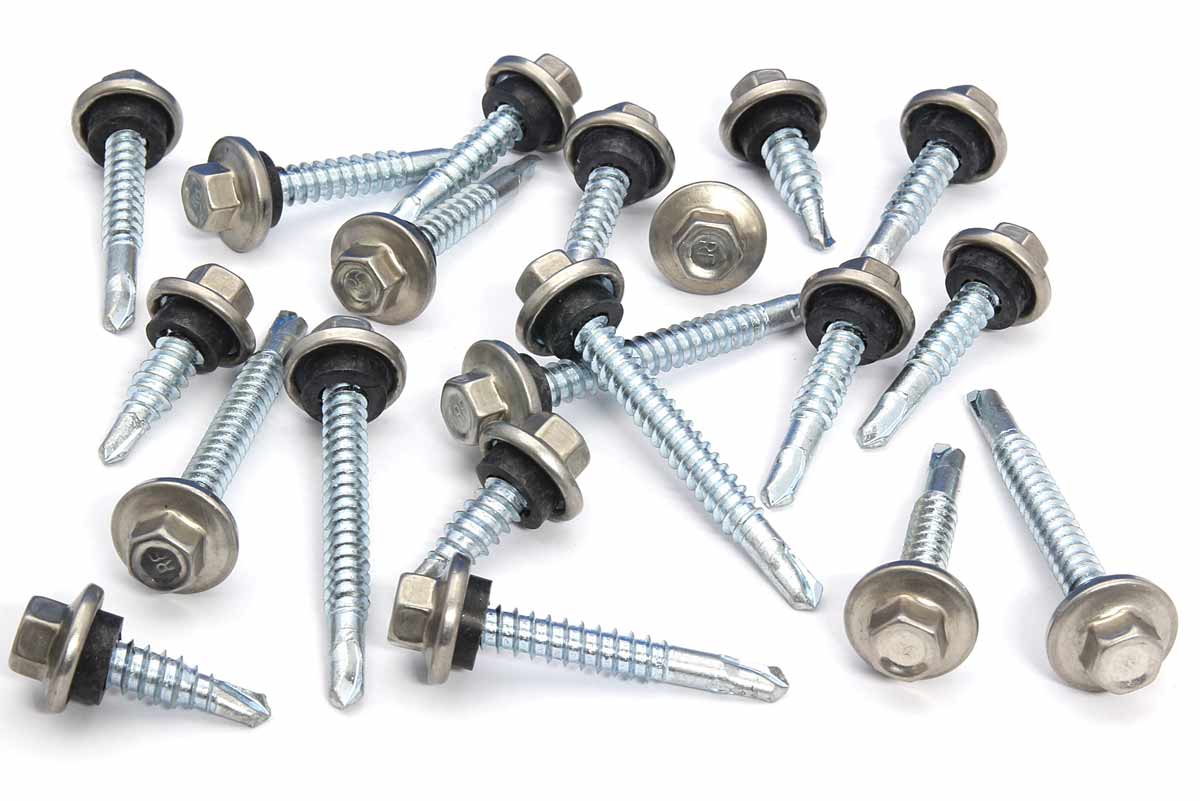

LONG-LIFE SELF DRILLERS
Rust Free Performance Roof Fasteners
HEX WASHER HEAD WITH WASHER, ZINC
APPLICATIONS
- Panel to secondary framing
- Panel to panel side laps
- Accessory to roof
- Steel roofing and sheeting to metal frame structure
PRODUCT FEATURES
- Specialized point design to improve drilling performance with less effort.
- Long-point design maximizes pullout performance and allows for extra drilling capacity.
- EPDM rubber washer for increased washer life.
- 300-series stainless steel cap for rust-free performance.
- Eliminates rust and streaking.
- Preferred fastener for all roofing applications.
INSTALLATION GUIDELINES
- A standard screw gun with a depth sensitive nosepiece should be used to install Long-life Drillers. For optimal fastener performance, the screw gun should be a minimum of 6 amps and have an rpm range of 0-2500.
- Adjust the screw gun nosepiece to properly seat the fastener.
- New magnetic sockets must be correctly set before use. Remove chip build-up as needed.
- The fastener is fully seated when the head is flush with the work surface.
- Overdriving may result in torsional failure of the fastener or stripout of the substrate.
- The fastener must penetrate beyond the metal structure a minimum of 3 pitches of thread.
| Description | Drill Point | Application | Drill & Tap Capacity | Insulation Thickness |
|---|---|---|---|---|
| 12 - 14 x 1-1/4” LL | #3 | panel to secondary | .035 - .210 | 0-3” |
| 12 - 14 x 1-1/2” LL | #3 | panel to secondary | .035 - .210 | 4” |
| 12 - 14 x 2” LL | #3 | panel to secondary | .035 - .210 | 6” |
| 1/4 - 14 x 7/8” LL Laptek | #1 | panel side laps | .018 - .095 | - |
| 1/4 - 14 x 1-1/4” LL | #3 | SSR laps/other | .035 - .210 | - |

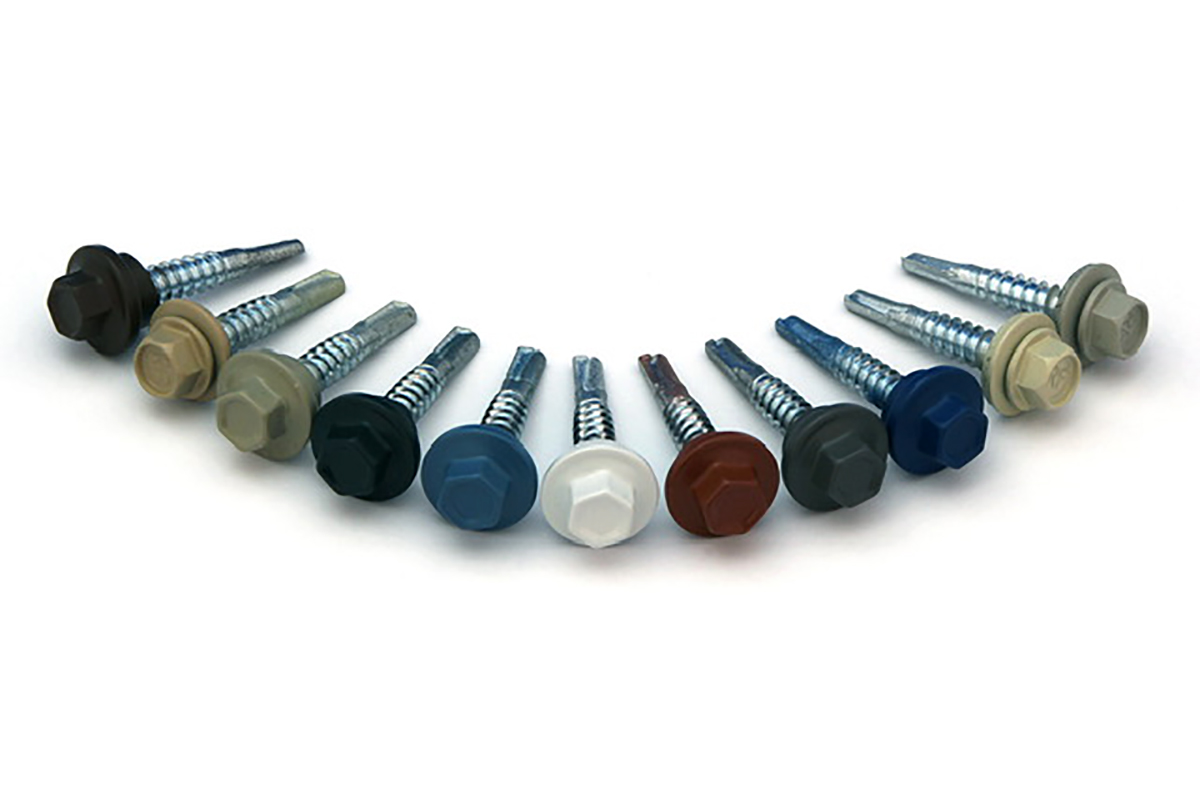

SELF DRILLERS
Color-Matched Wall Fasteners
HEX WASHER HEAD WITH WASHER, ZINC
APPLICATIONS
- Mansard panel to structure
- Wall panels to girts.
- Wall-panel to wall-panel side laps
- Accessory to wall
PRODUCT FEATURES
- High-tensile steel with vulcanized EPDM rubber-bonded washer eliminates ozone breakdown and washer leaks.
- Dual-seal washer design helps prevent leaks.
- Specialized point design to improve drilling performance with less effort.
- Long-point design maximizes pullout performance and allows for extra drilling capacity.
INSTALLATION GUIDELINES
- A standard screw gun with a depth-sensitive nosepiece should be used to install Self Drillers. For optimal fastener performance, the screw gun should be a minimum of 6 amps and have an rpm range of 0-2500.
- Adjust the screw gun nosepiece to properly seat the fastener.
- New magnetic sockets must be correctly set before use. Remove chip build-up as needed.
- The fastener is fully seated when the head is flush with the work surface.
- Overdriving may result in torsional failure of the fastener or stripout of the substrate.
- The fastener must penetrate beyond the metal structure a minimum of 3 pitches of thread.
| Description | Drill Point | Application | Drill & Tap Capacity | Insulation Thickness |
|---|---|---|---|---|
| 12 - 14 x 1-1/4” | #3 | panel to secondary | .035 - .210 | 0-3” |
| 12 - 14 x 1-1/2” | #3 | panel to secondary | .035 - .210 | 4” |
| 12 - 14 x 2” | #3 | panel to secondary | .035 - .210 | 6” |
| 1/4 - 14 x 7/8” | #1 | panel side laps | .080 - .090 | - |
